MPN: APRA538104A / APRA538105A / APRA538114A / APRA538115A / APRA538219A
FEATURES:
- One-piece free float design
- Designed to match seamlessly with Aero Precision’s M5 threaded upper receivers
- Eliminated center of top rail for weight reduction
- Top scalloped rails on the front and rear of the handguard
- M-LOK slots at 3, 6, and 9 o’clock positions
- Quick disconnect sling socket at the 3, 6, and 9 o’clock positions
- Indexing grooves in 12 o’clock position for positive grip control
- Available in Black and Flat Dark Earth
SPECIFICATIONS:
- Material: 6061-T6 Aluminum
- Finish: Black Hard Anodize or Cerakote
- Actual Length (When Installed):
- 12-Inch: 12.56″
- 15-Inch: 14.94″
- Weight:
- 12-Inch: 7.66 oz.
- 15-Inch: 8.71 oz.
- Mounting Hardware: 4.72 oz.
- Inside Diameter:
- Height: 1.83″
- Width: 1.52″
- Outside Diameter:
- Height: 2.16″
- Width: 1.74″
COMPATIBILITY:
- Aero Precision M5 Threaded Upper Receivers and most AR-10 upper receivers
NOTE:
- The M5 ATLAS S-ONE M-LOK Handguards are NOT compatible with Aero Precision M5E1 Enhanced Upper Receivers.
- The M5 ATLAS S-ONE M-LOK Handguards may NOT be compatible with some AR-10 billet upper receivers due to indexing tabs.
- Installation requires a T-15 Torx wrench (not included).
INCLUDES:

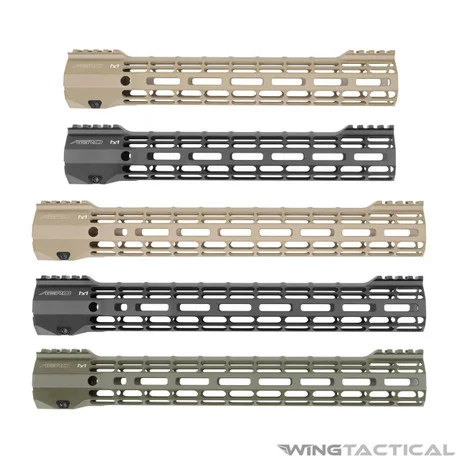

- 1x Aero Precision M5 ATLAS S-ONE M-LOK Handguard
- 1x Barrel Nut
- 1x Mounting Hardware Kit
DETAILS:
If you are searching for a sturdy rail system for your AR-10 but also want to maintain a narrow profile without sacrificing durability and stability, the Aero Precision M5 ATLAS handguard is what you are looking for.
