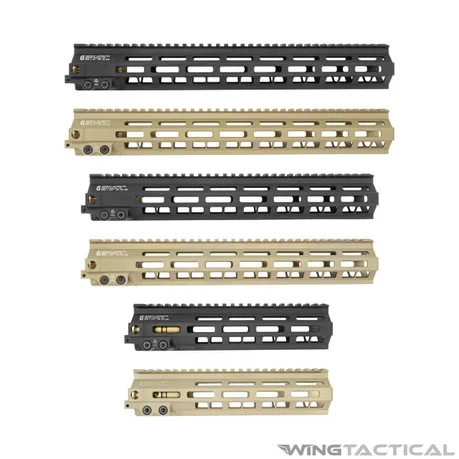

MPN: 05-284B / 05-284S / 05-285B / 05-285S / 05-286B / 05-286S
Features:
- One-piece free float design
- Full top scalloped rails for optional attachments
- Maximum venting at the lower 45° quadrants creates maximum heat dissipation and weight reduction
- An updated version of the proven Geissele Barrel Nut design for ease of installation and superior rigidity
- M-LOK slots at 1, 3, 6, 9, and 11 o’clock positions
- Compatible with most low-profile gas blocks
- Quick disconnect sling socket at the 3 and 9 o’clock positions
- Available in Black or Desert Dirt Color (DDC)
Specifications:
- Material: 6061-T6 Aluminum
- Finish: Type 3 Hardcoat Anodized
- Length (When Installed): 9.3-Inch, 13.5-Inch, and 15-Inch
- Weight (With Barrel Nut):
- 9.3-Inch: 10.3 oz.
- 13.5-Inch: 13.1 oz.
- 15-Inch: 14.3 oz.
- Inside Diameter: 1.35″
- Outside Diameter:
- Height: 2.3″
- Width: 2.11″
Compatibility:
- Mil-Spec AR-15 uppers
Includes:
- 1x Geissele Rail
- 1x Barrel Nut
- 1x Press Nut
- 2x Mounting Screw Washers
- 2x Socket Head Shoulder Screws
- 2x Set Screws
- 1x 5/64 Allen Wrench
- 1x 4mm Allen Wrench
*Barrel nut wrench not included
