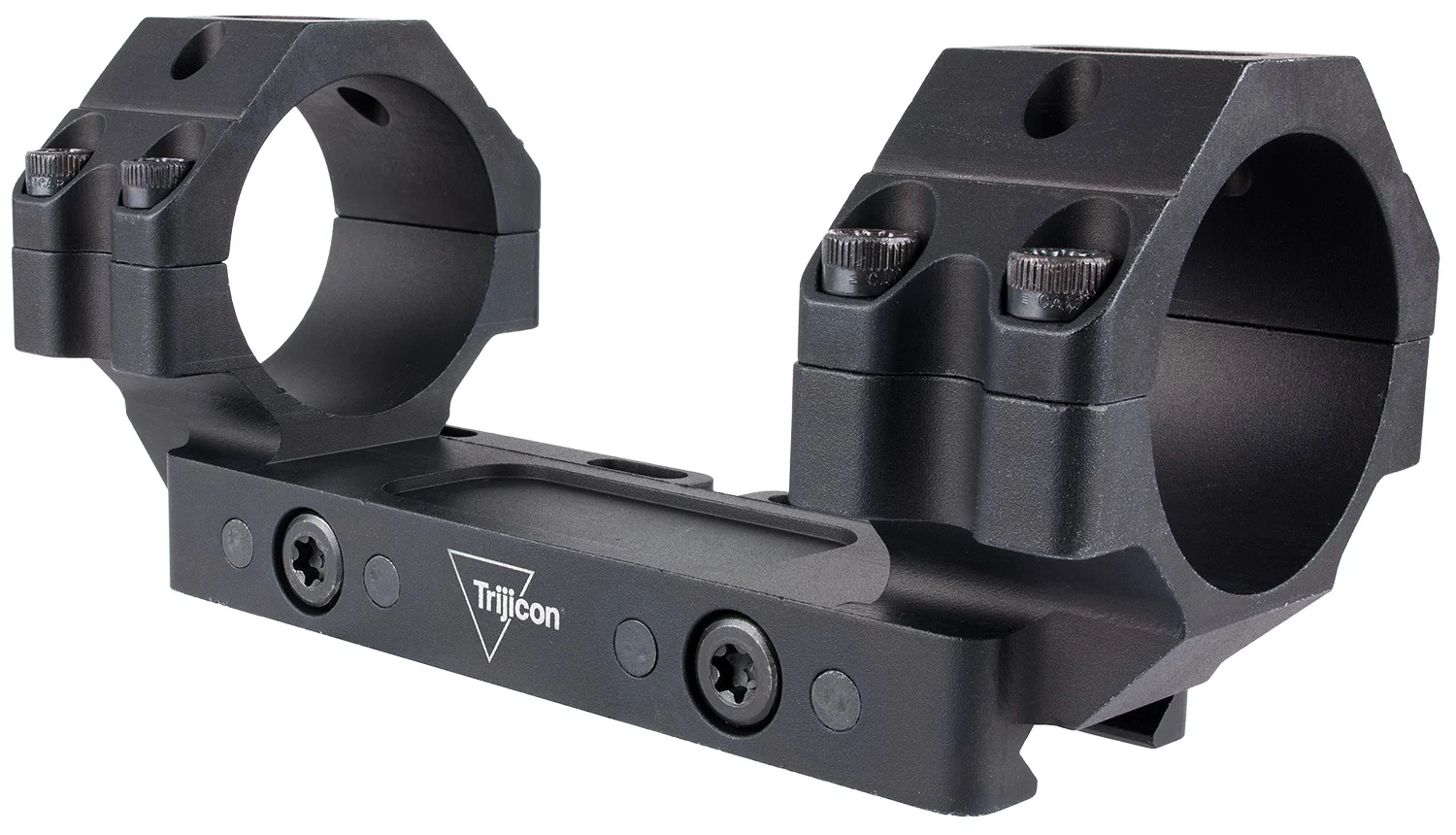

The Trijicon AC22059 Bolt Action Mount is a low-profile scope mount and ring combo engineered for bolt-action platforms. It features a 30 mm tube and a 1.125 in distance from the top of the mounting rail to the optical axis to keep the optic as low as practical. Constructed from Mil-Spec drop-test rated 6061-T6 aluminum with a matte black anodized finish, the mount is designed to deliver durable, repeatable return-to-zero performance on any Mil-Spec or NATO Picatinny rail. The mount is optimized for variable-power optics with objective lenses up to 44 mm and uses a flush mounting bolt configuration for a sleek side profile.
Key Specifications
- The tube diameter is 30 mm.
- The housing material is 6061-T6 aluminum.
- The finish is matte black.
- The overall length is 4.74 in (120.4 mm).
- The overall width is 1.95 in (49.53 mm).
- The height from rail to optical axis is 1.125 in (28.58 mm).
- It fits objective lenses up to 44 mm.
- The rail torque specification is 30–38 in-lbs.
- The ring cap torque specification is 14–16 in-lbs.
- The mount is designed for Picatinny rail systems.
Low weight, a slim profile, and Mil-Spec durability make the AC22059 an effective choice for hunting and precision shooting setups where a low optical axis and reliable return-to-zero are priorities. Its compatibility with a wide range of variable-power optics and standard Picatinny rails provides flexibility across bolt-action platforms while maintaining a clean, functional appearance.
